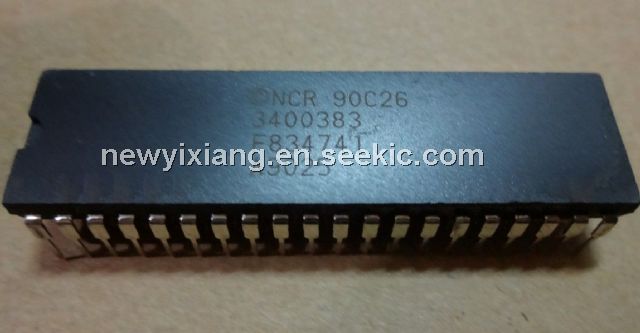

Product Summary

The NCR90C26 is a dual feed active-ORing programmable hot swap controller. The NCR90C26 drives external power MOSFET switches that connect the supply to the load while reducing in-rush current and providing over-current protection. Its applications include Telecom Hot-Swap Card - AdvancedTCATM, Network Processors, Power-on Ethernet, IEEE 802.3af.

Parametrics

NCR90C26 absolute maximum ratings: (1)Temperature under bias: -55 to 125℃; (2)power supply current: 15mA; (3)storage temperature: -65 to 150℃; (4)lead solder temperature: 300℃; (5)terminal voltage with respect to VSS: -0.3 to 7V; (6)open drain output short circuit current: 100mA; (7)junction temperature: 150℃; (8)ESD rating per JEDEC: 2000V; (9)temperature range: -40 to 85℃.

Features

NCR90C26 features: (1)Eliminates Passive ORing Diodes for Reduced Power Consumption; (2)High Noise Immunity on All Logic Inputs; (3)Soft Starts Main Power Supply on Card Insertion or System Power Up with Slew Rate Control; (4)Programmable Differential Current Sense; (5)Programmable Inrush Current Limiting; (6)Master Enable to Allow System Control of Power-Up or -Down; (7)Programmable Independent Enabling of up to 4 DC/DC Converters; (8)Programmable Circuit Breaker Level and Mode.

Diagrams

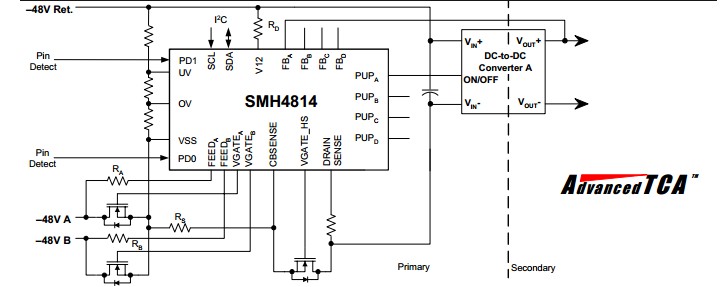

NCR90C26 block diagram
