Product Summary

The NJM4560L is a dual operational amplifier. The NJM4560L combines many of the features of the NJM4558 as well as providing the capability of wider bandwidth, and higher slew rate make the NJM4560 ideal for active filters, data and telecommunications, and many instrumentation applications. The availability of the NJM4560L in the surface mounted micro-package allows the NJM4560L to be used in critical applications requiring very high packing densities.

Parametrics

NJM4560L absolute maximum ratings: (1)Supply voltage: ±18V; (2)differential input voltage: ±30V; (3)input voltage: ±15V; (4)power dissipation: 500mW; (5)operating temperature range: -40 to 85℃; (6)storage temperature range: -40 to 125℃.

Features

NJM4560L features: (1)Operating Voltage: ±4V to ±18V; (2)Wide Gain Bandwidth Product: 10MHz typ. ; (3)Slew Rate: 4V/μs typ.; (4)Package Outline: DIP8, DMP8, SIP8, SOP8 JEDEC 150mil; (5)Bipolar Technology.

Diagrams

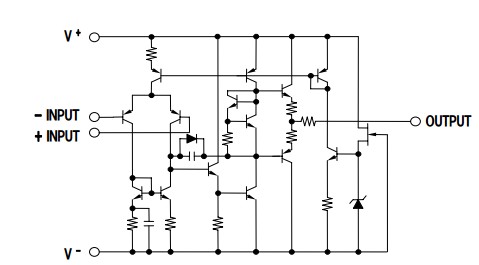

NJM4560L block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

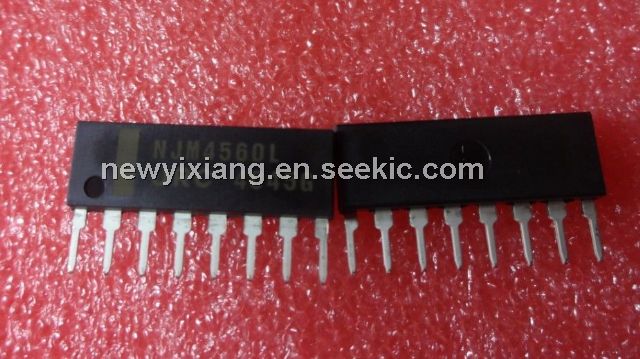

NJM4560L
NJM4560L

NJR

Operational Amplifiers - Op Amps Dual High Gain

Data Sheet

0-2000: $0.16
2000-4000: $0.15
