Product Summary

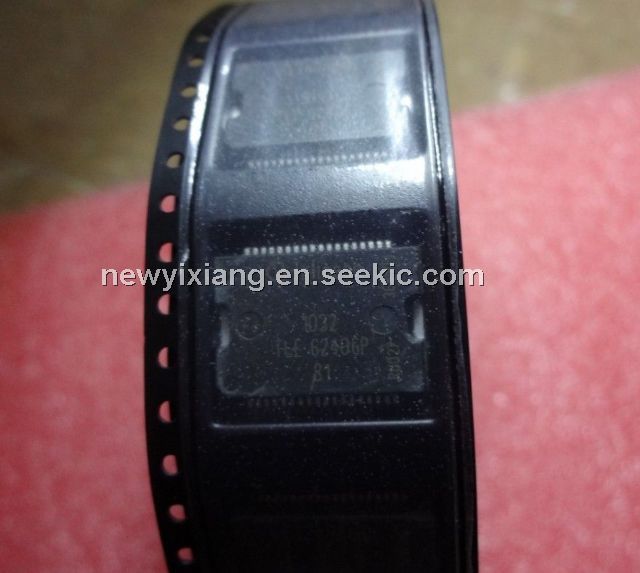

The TLE6240GP is a smart 16-fold low-side switch. It is protected by embedded protection functions and designed for automotive and industrial applications. The applications of the TLE6240GP include μC Compatible Power Switch for 12 V and 24 V Applications, Switch for Automotive and Industrial System, Solenoids, Relays and Resistive Loads, Robotic Controls.
Parametrics
TLE6240GP absolute maximum ratings: (1)supply voltage: -0.3 to 7V; (2)continuous drain source voltage: 45V; (3)input voltage: -0.3 to 7V; (4)output current per channel: 0.3A; (5)output current: 14A; (6)single pulse inductive energy: 50mJ; (7)power dissipation: 3.3W; (8)thermal resistance: 1.5K/W.
Features
TLE6240GP features: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)16 bit Serial Data Input and Diagnostic Output (2 bit/chan. acc. SPI Protocol); (5)Direct Parallel Control of Eight channels for PWM Applications; (6)Parallel Inputs High or Low Active Programmable; (7)General Fault Flag; (8)Low Quiescent Current; (9)Compatible with 3V Microcontrollers; (10)Electostatic discharge (ESD) Protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE6240GP |
Infineon Technologies |
Power Switch ICs - Power Distribution MULTI CHANNEL SWITCH |
Data Sheet |
|
|
||||||||||||
