Product Summary

The FMS6501 is a 12 input/9 output video switch matrix with input clamp, input bias circuitry, and output drivers. The 12 inputs that can be routed to any of nine outputs. Each input can be routed to one or more outputs, but only one input may be routed to any one output. Its applications include Cable and Satellite Set-Top Boxes, TV and HDTV Sets, A/V Switchers, Personal Video Recorders (PVR), Security / Surveillance, Video Distribution, Automotive (In-Cabin Entertainment).

Parametrics

FMS6501 absolute maximum ratings: (1)DC supply voltage: -0.3 to 6V; (2)analog and digital I/O: -0.3 to VCC+0.3V; (3)Output current any one channel: 40mA; (4)junction temperature: 150℃; (5)storage temperature range: -65 to 150℃; (6)lead temperature: 300℃.

Features

FMS6501 features: (1)12 x 9 Crosspoint Matrix; (2)Supports SD, PS, and HD 1080i/1080p Video; (3)Input Clamp / Bias Circuitry; (4)AC or DC-Coupled Inputs; (5)AC or DC-Coupled Outputs; (6)Dual-Load (75Ω) Output Drivers with High-Impedance Disable; (7)One-to-One or One-to-Many Input to Output Switching; (8)Programmable Gain: +6, +7, +8, or +9dB; (9)3.3V or 5V Single-Supply Operation; (10)Lead-Free SSOP-28 Package.

Diagrams

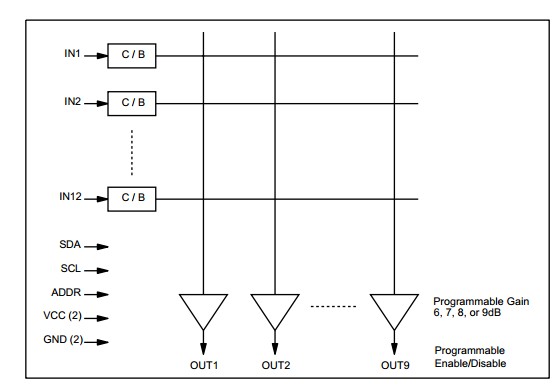

FMS6501 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

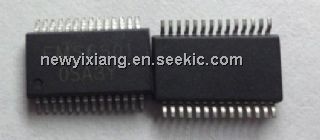

FMS6501MSA28
FMS6501MSA28
Fairchild Semiconductor
Video ICs 12 Input 9 Output VideoSwtch
Data Sheet
Negotiable

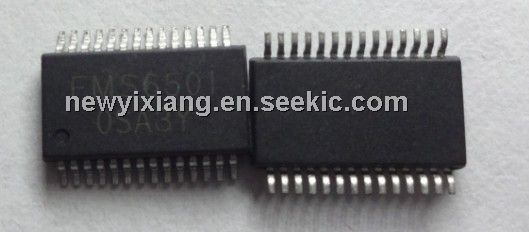

FMS6501MSA28X
FMS6501MSA28X
Fairchild Semiconductor
Video ICs 12 Input 9 Output VideoSwtch
Data Sheet
0-1: $3.33
1-25: $2.72
25-100: $2.44
100-250: $2.22
FMS6501
FMS6501
Other

Data Sheet
Negotiable
