Product Summary

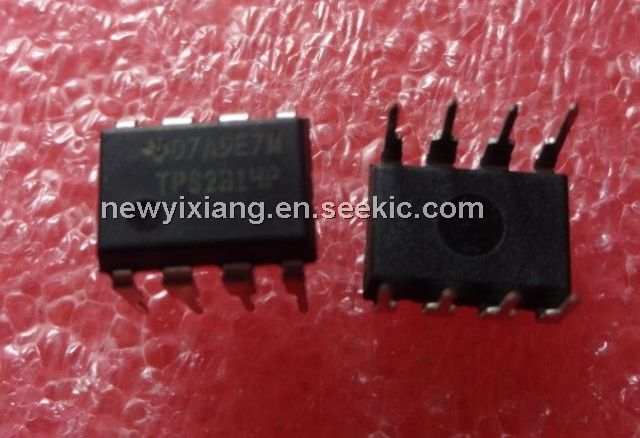

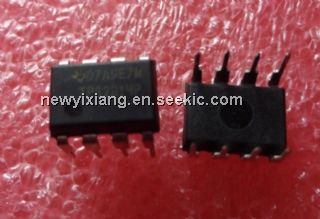

The TPS2814P is a dual high-speed MOSFET driver. This performance is achieved with a design that inherently minimizes shoot-through current and consumes an order of magnitude less supply current than competitive products. It includes a regulator to allow operation with supply inputs between 14 V and 40 V. The regulator output can power other circuitry, provided power dissipation does not exceed package limitations.
Parametrics
TPS2814P absolute maximum ratings: (1)Regulator input voltage range: -0.3 to 42V; (2)supply voltage: -0.3 to 15V; (3)input voltage range: -0.3 to VCC; (4)Continuous regulator output current: 25mA; (5)operating ambient temperature range: -40 to 125℃; (6)storage temperature range: -65 to 150℃; (7)lead temperature: 260℃.
Features
TPS2814P features: (1)Industry-Standard Driver Replacement; (2)25-ns Max Rise/Fall Times and 40-ns Max Propagation Delay - 1-nF Load, VCC = 14V; (3)2-A Peak Output Current, VCC = 14 V; (4)5-µA Supply Current - Input High or Low; (5)4-V to 14-V Supply-Voltage Range; Internal Regulator Extends Range to 40V; (6)–40 to 125℃ Ambient-Temperature Operating Range.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS2814P |
Texas Instruments |
Power Driver ICs Dual 2A MOSFET |
Data Sheet |
|
|
||||||||||||
|
TPS2814PW |
Texas Instruments |
Power Driver ICs One Inv One Non-inv MOSFET Driver |
Data Sheet |
|
|
||||||||||||
|
TPS2814PWR |
Texas Instruments |
Power Driver ICs Dual 2A MOSFET |
Data Sheet |
|
|
||||||||||||
|
TPS2814PWRG4 |
Texas Instruments |
Power Driver ICs One Inv One Non-inv MOSFET Driver |
Data Sheet |
|
|
||||||||||||
|
TPS2814PWG4 |
Texas Instruments |
Power Driver ICs One Inv One Non-inv MOSFET Driver |
Data Sheet |
|
|
||||||||||||
|
TPS2814PE4 |
Texas Instruments |
Power Driver ICs One Inv One Non-inv MOSFET Driver |
Data Sheet |
|
|
||||||||||||
