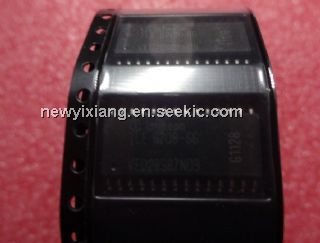

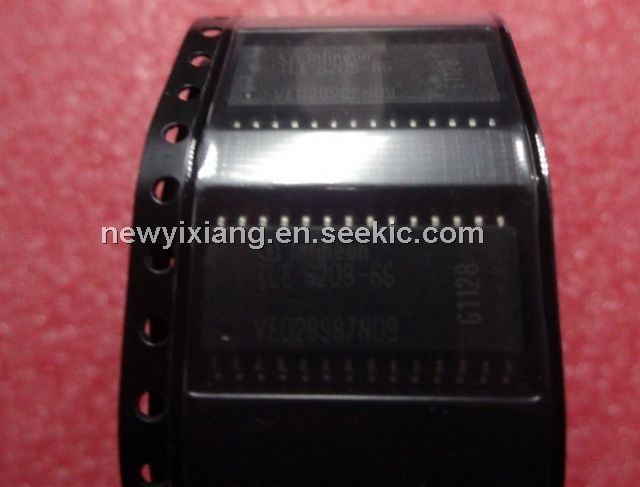

TLE6208-6G

hex-half-bridge, 40V, 10mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 500 :	1.50 / Piece

PartNumber:: TLE6208-6G

Brand:: Infineon Technologies - Infineon | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jacob's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:TLE6208-6G
US $1.50 - 1.50
Quantity:

piece

Product Summary

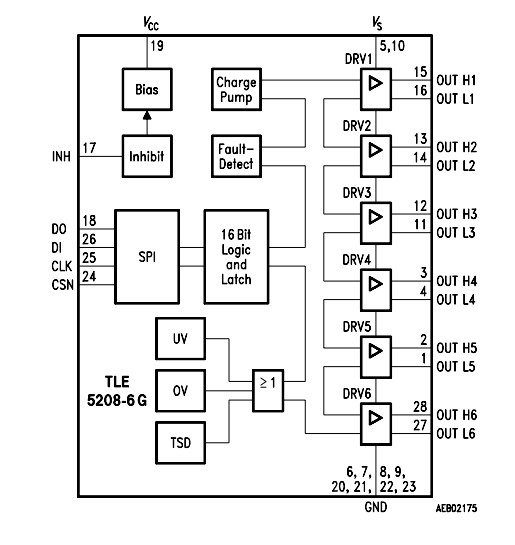

The TLE6208-6G is a hex-half-bridge. The part is based on Infineons Smart Power Technology SPT which allows bipolar and CMOS control circuitry in accordance with DMOS power devices existing on the same monolithic circuitry. The six low and high side drivers are freely configurable and can be controlled separately. Therefore all kind of loads can be combined.

Parametrics

TLE6208-6G absolute maximum ratings: (1)supply voltage: 40V; (2)logic supply voltage: -0.3 to 5.5V; (3)logic input voltages: -0.3 to 5.5V; (4)logic output voltage: -0.3 to VCCV; (4)output current: 2A; (5)junction temperature: -40 to 150℃; (6)storage temperature: -50 to 150℃.

Features

TLE6208-6G features: (1)Six High-Side and six Low-Side-Drivers; (2)Free configurable as switch, halfbridge or H-bridge; (3)Optimized for DC motor management applications; (4)0.6 A continuous (1 A peak) current per switch; (5)RDS ON; typ. 0.8 Ω, @ 25℃ per switch; (6)Outputs fully short circuit protected with diagnosis; (7)Overtemperature-Protection with hysteresis and diagnosis; (8)Temperature prewarning; (9)Standard SPI-Interface.
