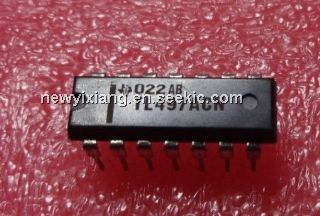

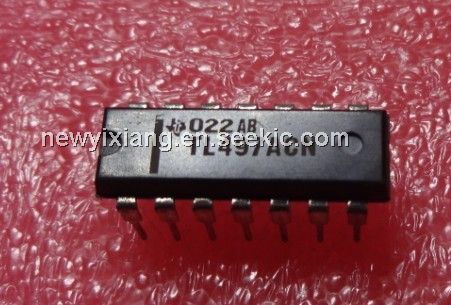

Product Summary
The TL497ACN is a 500mA peak step-up, step-down, inverting switching voltage regulator. The TL497ACN incorporates all the active functions required in the construction of switching voltage regulators. It also can be used as the control element to drive external components for high-power-output applications. The TL497ACN was designed for ease of use in step-up, step-down, or voltage-inversion applications requiring high efficiency.
Parametrics
TL497ACN absolute maximum ratings: (1)Supply voltage: 15V; (2)output voltage: 35V; (3)input voltage: 5V; (4)diode reverse voltage: 35V; (5)power switch current: 750mA; (6)diode forward current: 750mA; (7)lead temperature: 260℃; (8)storage temperature range: -65 to 150℃.
Features
TL497ACN features: (1)High Efficiency: 60% or Greater; (2)Peak Switch Current: 500 mA; (3)Input Current Limit Protection; (4)TTL-Compatible Inhibit; (5)Adjustable Output Voltage; (6)Input Regulation: 0.2% Typ; (7)Output Regulation: 0.4% Typ; (8)Soft Start-Up Capability; (9)Can be Used in Buck, Boost, and Inverting Configurations.

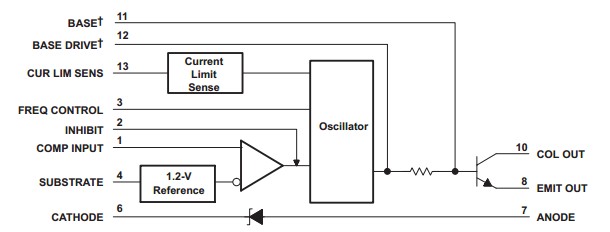

Diagrams
