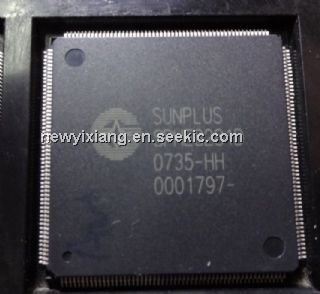

SPHE8281D

DVD single chip MPEG A/V processor, -0.3 to 5.5V, 50mA, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 200 :	5.00 / Piece

PartNumber:: SPHE8281D

Brand:: other - other | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jacob's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-01

From Other Seller

Part Number:SPHE8281D
US $5.00 - 5.00
Quantity:

piece

Product Summary

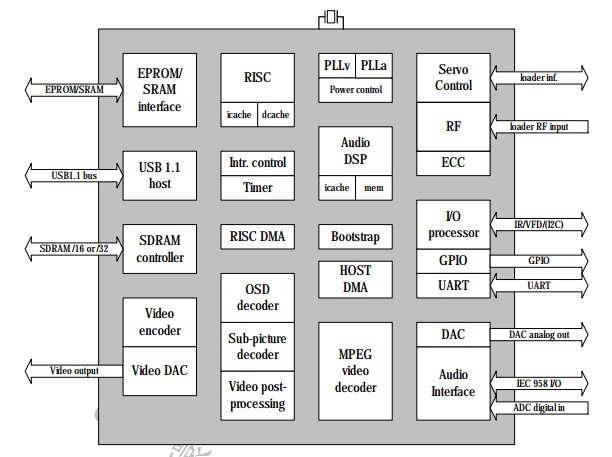

The SPHE8281D is a DVD single chip MPEG A/V processor. It is designed to maximize system performance with minimum cost. It integrates DVD/CD controller, host processor, A/V decoding hardware, audio quality DAC and a 6-channel multi-format TV-encoder.

Parametrics

SPHE8281D absolute maximum ratings: (1)voltage on any pin relative to VSS: -0.3 to 5.5V; (2)voltage on VDD supply relative to VSS: -0.3 to 3.45V; (3)voltage on VDDK supply relative to VSS: -0.3 to 1.9V; (4)storage temperature: -55 to 150℃; (5)soldering temp: 240℃; (6)short circuit current: 50mA.

Features

SPHE8281D features: (1)De-interlacing of interlaced video source; (2)Flexible vertical interpolation; (3)Flexible horizontal interpolation with optional CIF filter; (4)Powerful cropping and panning effect; (5)Support YUV422, 8-bit indexed color format; (6)Embedded 2-channel 24-bit audio DAC; (7)Built-in system PLL and audio PLL generate all clock sources required from single 27MHz crystal input.
