Product Summary
The MX25L3205DM2I-12G is a CMOS serial flash. It is configured as 4,194,304 x 8 internally. When it is in two I/O read mode, the structure becomes 16,772,216 bits x 2. The MX25L3205DM2I-12G is a 67,108,864 bit serial Flash memory, which is configured as 8,388,608 x 8 internally. When it is in two I/O read mode, the structure becomes 33,554,432 bits x 2.
Parametrics
MX25L3205DM2I-12G absolute maximum ratings: (1)ambient operating temperature: -40 to 85℃; (2)storage temperature: -55 to 125℃; (3)applied input voltage: -0.5 to 4.6V; (4)applied output voltage: -0.5 to 4.6V; (5)VCC to ground potential: -0.5 to 4.6V.
Features
MX25L3205DM2I-12G features: (1)Status Register Feature; (2)Electronic Identification; (3)Input Data Format; (4)Advanced Security Features; (5)Auto Erase and Auto Program Algorithm.

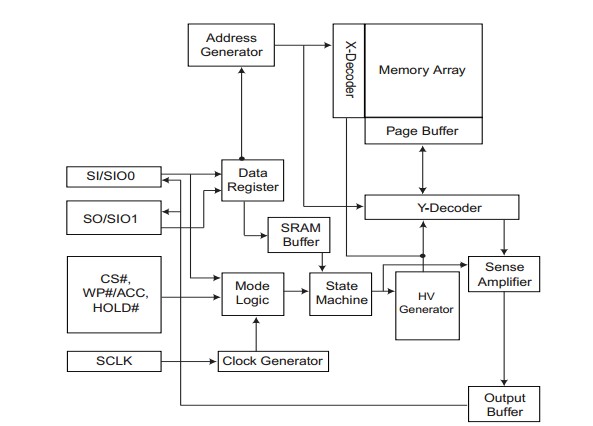

Diagrams
