Product Summary
The TA8254AH is a 45W audio power amplifier. It is BTL stereo audio power amplifier for car audio application, especially for 2Ω load impedance. The TA8254AH is built-in stand-by function, muting function, diagnosis circuit output clipping detector and various kind of protections.
Parametrics
TA8254AH absolute maximum ratings: (1)Peak supply voltage: 50V; (2)DC supply voltage: 25V; (3)operating supply voltage: 18V; (4)output current: 9A; (5)power dissipation: 83W; (6)operating temperature: -40 to 85℃; (7)storage temperature: -55 to 150℃.
Features
TA8254AH features: (1)high power; (2)low distortion ratio; (3)low noise; (4)built-in stand-by function; (5)built-in output clipping detection and diagnosis circuit; (6)built-in various protection circuits.

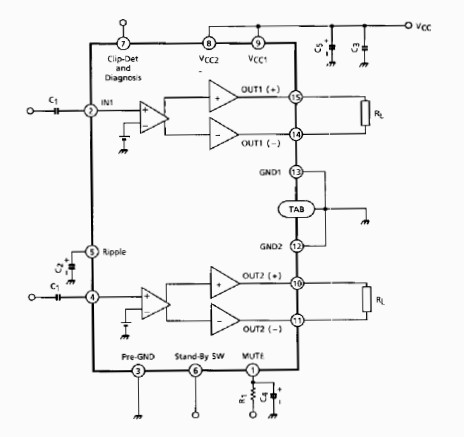

Diagrams
