TDA9886T

demodulator, 5.5V, 10mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~1.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 1500 :	1.40 / Piece

PartNumber:: TDA9886T

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jacob's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:TDA9886T
US $1.40 - 1.40
Quantity:

piece

Product Summary

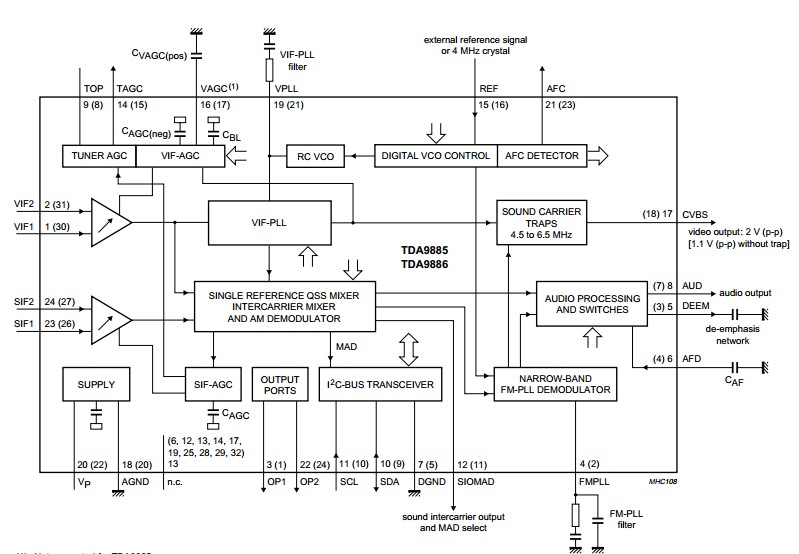

The TDA9886T is an I2C-bus controlled single and multistandard slignment-free IF-PLL demodulator. The TDA9886T is an alignment-free multistandard (PAL, SECAM and NTSC) vision and sound IF signal PLL demodulator for positive and negative modulation, including sound AM and FM processing. The applications of the TDA9886T include TV, VTR, PC, and STB.

Parametrics

TDA9886T absolute maximum ratings: (1)supply voltage: 5.5V; (2)short-circuit time to ground or VP: 10s; (3)storage temperature: -25 to 150℃; (4)ambient temperature: -20 to 70℃; (5)electrostatic discharge voltage on all pins: -400 to 400V.

Features

TDA9886T features: (1)5V supply voltage; (2)Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier, AC-coupled; (3)Multistandard true synchronous demodulation with active carrier regeneration: very linear demodulation, good intermodulation figures, reduced harmonics, and excellent pulse response; (4)Gated phase detector for L and L-accent standard; (5)Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free, frequencies switchable for all negative and positive modulated standards via I2C-bus; (6)Digital acquisition help, VIF frequencies of 33.4, 33.9, 38.0, 38.9, 45.75, and 58.75 MHz; (7)4 MHz reference frequency input: signal from Phase-Locked Loop (PLL) tuning system or operating as crystal oscillator.
