Product Summary

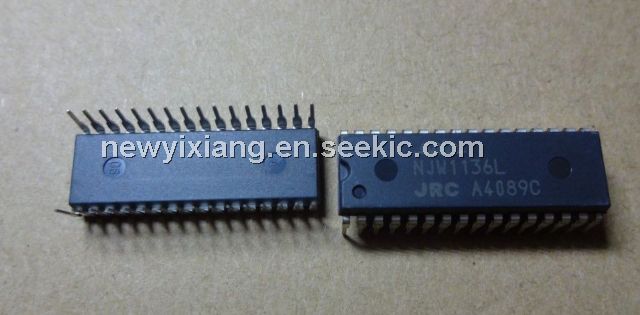

The NJW1136L is an audio processor with subwoofer output. It includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions. Also the NJW1136L includes the LPF for subwoofer output and bass boost function. The original surround system reproduces natural surround sound and clear vocal orientation.
Parametrics
NJW1136L absolute maximum ratings: (1)supply voltage: 15V; (2)power dissipation: 700mW; (3)operating temperature range: -20 to 75℃; (4)storage temperature range: -40 to 125℃.
Features
NJW1136L features: (1)Operating Voltage: 8 to 13V; (2)3ch Output(Lch, Rch, Subwoofer ch) / 2ch Output(Lch, Rch); (3)LPF Filter (Adjustable cut off frequency by external parts); (4)AGC Circuit (It reduces volume difference among input sources.); (5)Adjustable AGC boost level by external parts and AGC compression level by I2C BUS; (6)eala(NJRC Original Surround System) Simulated Stereo; (7)I2C BUS Interface; (8)Bi-CMOS Technology; (9)Package Outline.

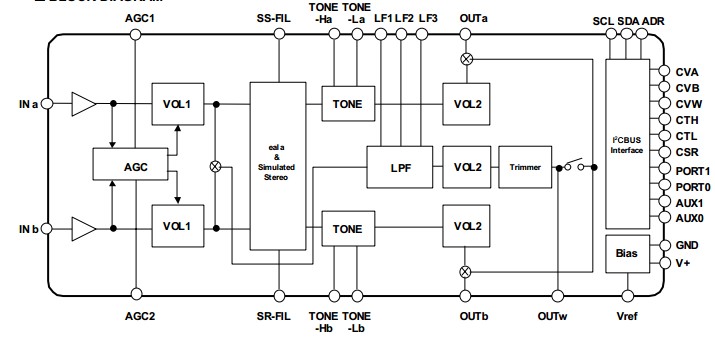

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJW1136L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
