Product Summary

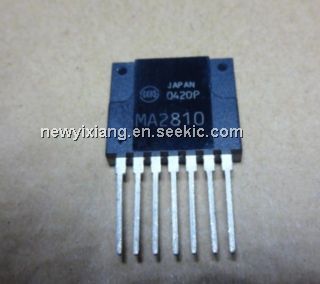

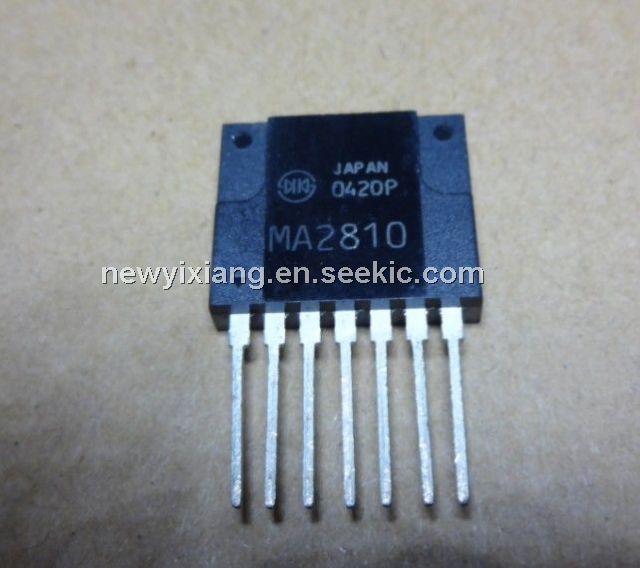

The MA2810 is a power switching regulator.

Parametrics

MA2810 absolute maximum ratings: (1)Storage temperature: -30 to 125℃; (2)operating temperature: -20 to 125℃; (3)junction temperature: 150℃; (4)peak input voltage: 850V; (5)maximum operating frequency: 200kHz; (6)dielectric strength: 2kV; (7)fold back control current: 100mA.

Features

MA2810 features: (1)collector cutoff current: 0.1mA; (2)collector to emitter saturation voltage: 1V; (3)reverse current: 10μA; (4)forward voltage: 1.7V; (5)driving saturation voltage: 2.3V.

Diagrams

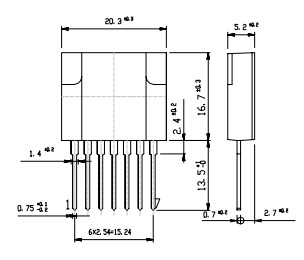

MA2810 dimensions
