Product Summary
The UDN7180A is a gas-discharge display segment driver. It reduces substantially the number of discrete components required with panels in calculator, clock and instrumentation applications. The UDN7180A driver requires external current limiting and is intended for higher-current applications or where individual outputs are operated at differential current levels.
Parametrics
UDN7180A absolute maximum ratings: (1)supply voltage: -115V; (2)input voltage: 20V; (3)output current: 20mA; (4)power dissipation: 2.2W; (5)operating temperature range: -20 to 85℃; (6)storage temperature range: -65 to 150℃.
Features
UDN7180A features: (1)reliable monolithic construction; (2)high output breakdown voltage; (3)low power; (4)TTL/MOS compatible inputs.

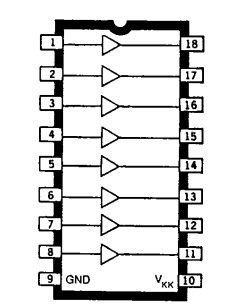

Diagrams
