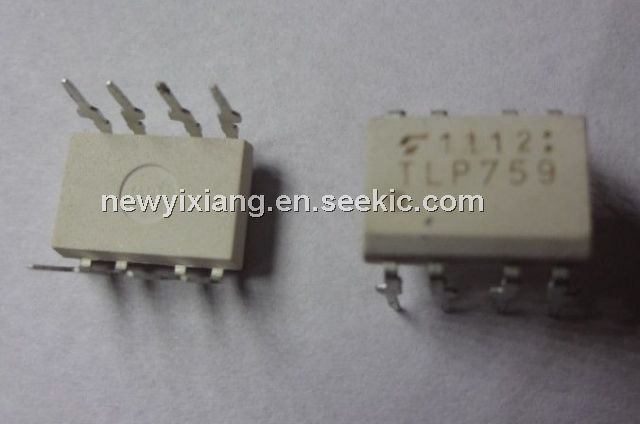

The TLP759 is a digital logic ground isolation line receiver. It consists of a high output light emitting diode and a high speed detector of one chip photo diode transistor. This unit is 8-lead DIP. The TLP759 has no internal base connection, and a faraday shield integrated on the photodetector chip provides an effective common mode noise transient immunity.
Parametrics
TLP759 absolute maximum ratings: (1)forward current: 25mA; (2)pulse forward current: 50mA; (3)peak transient forward: 1A; (4)reverse voltage: 5V; (5)diode power dissipation: 45mW; (6)output current: 8mA; (7)peak output current: 16mA; (8)operating temperature range: -55 to 100℃; (9)storage temperature range: -55 to 125℃.
Features
TLP759 features: (1)forward voltage: 1.65V; (2)forward voltage temperature coefficient: -2mV/℃; (3)capacitance between terminals: 45pF; (4)high level output current: 5μA; (5)capacitance between terminals: 45pF.
