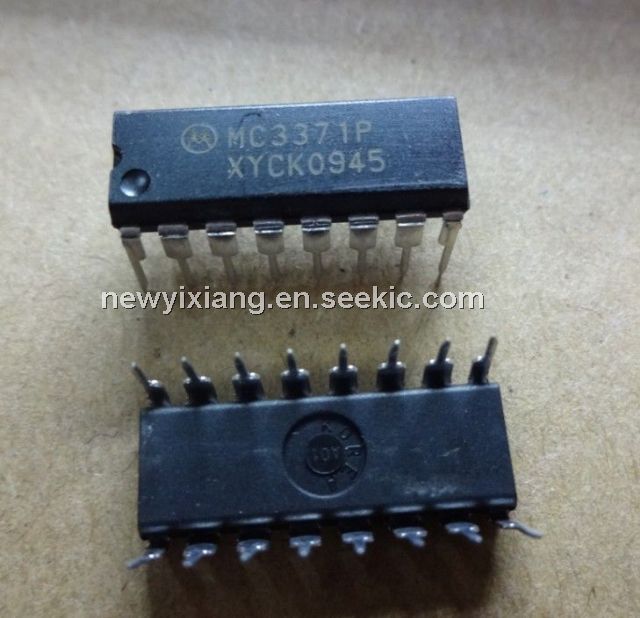

MC3371P

FM IF, 50mA, 10V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
20 ~ 1500 :	0.60 / Piece

PartNumber:: MC3371P

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jacob's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-02

From Other Seller

Part Number:MC3371P
US $0.60 - 0.60
Quantity:

piece

Product Summary

The MC3371P is a low power narrowband FM IF. It is designed for use in FM dual conversion communication equipment. The MC3371P are similar to the MC3361/MC3357 FM IFs, except that a signal strength indicator replaces the scan function controlling driver which is in the MC3371P. The MC3371P is designed for the use of parallel LC components, while the MC3372 is designed for use with either a 455 kHz ceramic discriminator, or parallel LC components.

Parametrics

MC3371P absolute maximum ratings: (1)power supply voltage: 10Vdc; (2)RF input voltage: 10Vrms; (3)detector input voltage: 1Vpp; (4)squeich input voltage: 6Vdc; (5)mute function: -0.7 to 10Vpk; (6)mute sink current: 50mA; (7)junction temperature: 150℃; (8)storage temperature range: -65 to 150℃.

Features

MC3371P feature: (1)Wide Operating Supply Voltage Range: VCC = 2.0 to 9.0V; (2)Input Limiting Voltage Sensitivity of –3.0 dB; (3)Low Drain Current: ICC = 3.2 mA, @ VCC = 4.0 V, Squelch Off; (4)Minimal Drain Current Increase When Squelched; (5)Signal Strength Indicator: 60 dB Dynamic Range; (6)Mixer Operating Frequency Up to 100 MHz; (7)Fewer External Parts Required than Earlier Devices.
