Product Summary

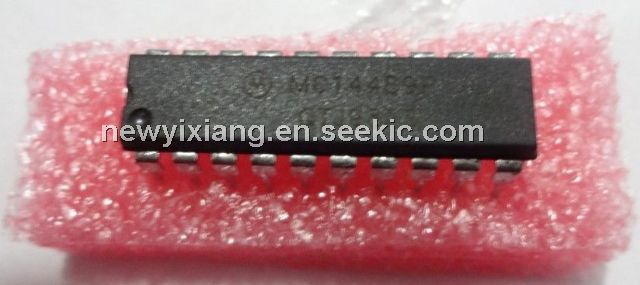

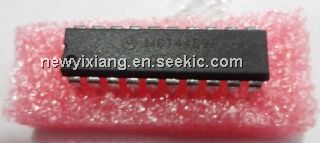

The MC14489P is a multi-character LED display/lamp driver. The MC14489P is compatible with the Motorola SPI and National MICROWIRE serial data ports. The chips patented BitGrabber registers augment the serial interface by allowing random access without steering or address bits. A 24–bit transfer updates the display register. Changing the configuration register requires an 8–bit transfer.

Parametrics

MC14489P absolute maximum ratings: (1)DC supply voltage: -0.5 to 6V; (2)DC input voltage: -0.5 to VDD+0.5V; (3)DC output voltage: -0.5 to VDD+0.5V; (4)DC input current: ±15mA; (5)DC supply current: ±350mA; (6)chip junction temperature: -40 to 130℃; (7)device thermal resistance: 90℃/W.

Features

MC14489P features: (1)Operating Voltage Range of Drive Circuitry: 4.5 to 6V; (2)Operating Junction Temperature Range: -40℃ to 130℃; (3)Current Sources Controlled by Single Resistor Provide Anode Drive; (4)Low-Resistance FET Switches Provide Direct Common Cathode Interface; (5)Low-Power Mode (Extinguishes the LEDs) and Brightness Controlled via Serial Port; (6)Special Circuitry Minimizes EMI when Display is Driven and Eliminates EMI in Low-Power Mode.

Diagrams

MC14489P block diagram
